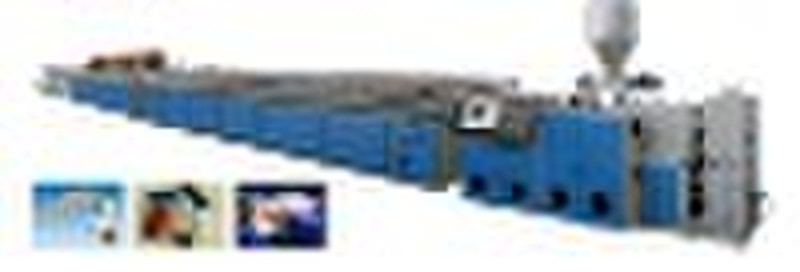

PVC plastic profile extrusion line

Yunhuaxinyuan series PVC profileproduction line: 1.PVC profile extrusion line is mainly used in PVC door& window profile, wide door board,window board,,production the gate line,window frame, furniture edge, door frames, decorative profile. 2.For different sectional surface and die head,twinconical( parallel ) screw extruder of different specifications can be chosen together with corresponding vacuum calibrating table,haul-off unit,cutting unit,tilter and etc. 3.Capacity of main frame can be optionally chosen from 60-700 Kg/h.the haul-off unit has applied unique of our company ,stable work,good reliability and large pulling force. 4.Vacuum setting has applied special enlarged vortex cooling system which is good for cooling and calibrating so as to meet demand od high speed extrusion.movement speed and drawing speed of cutting machine keep synchronous.all movements are controlled by imported PLC,the design in reasonable ,the operation is stable ,also it can conduct automatic cutting with fixed length.powder&dust suction device can be provided . 5.with different die tooling,the tilter platform can choose such specifications as 4-meter ,6-meter,8-meter,11-meter...etc.with twin parallel screw extruder,it is particularly suitable for high speed extruding of profile material.Main technical parameter modelMSYF150MSYF180MSYF240MSYF300Maximum width(mm)150180240300Total power of auxiliary(kw)1518.727.533.1
